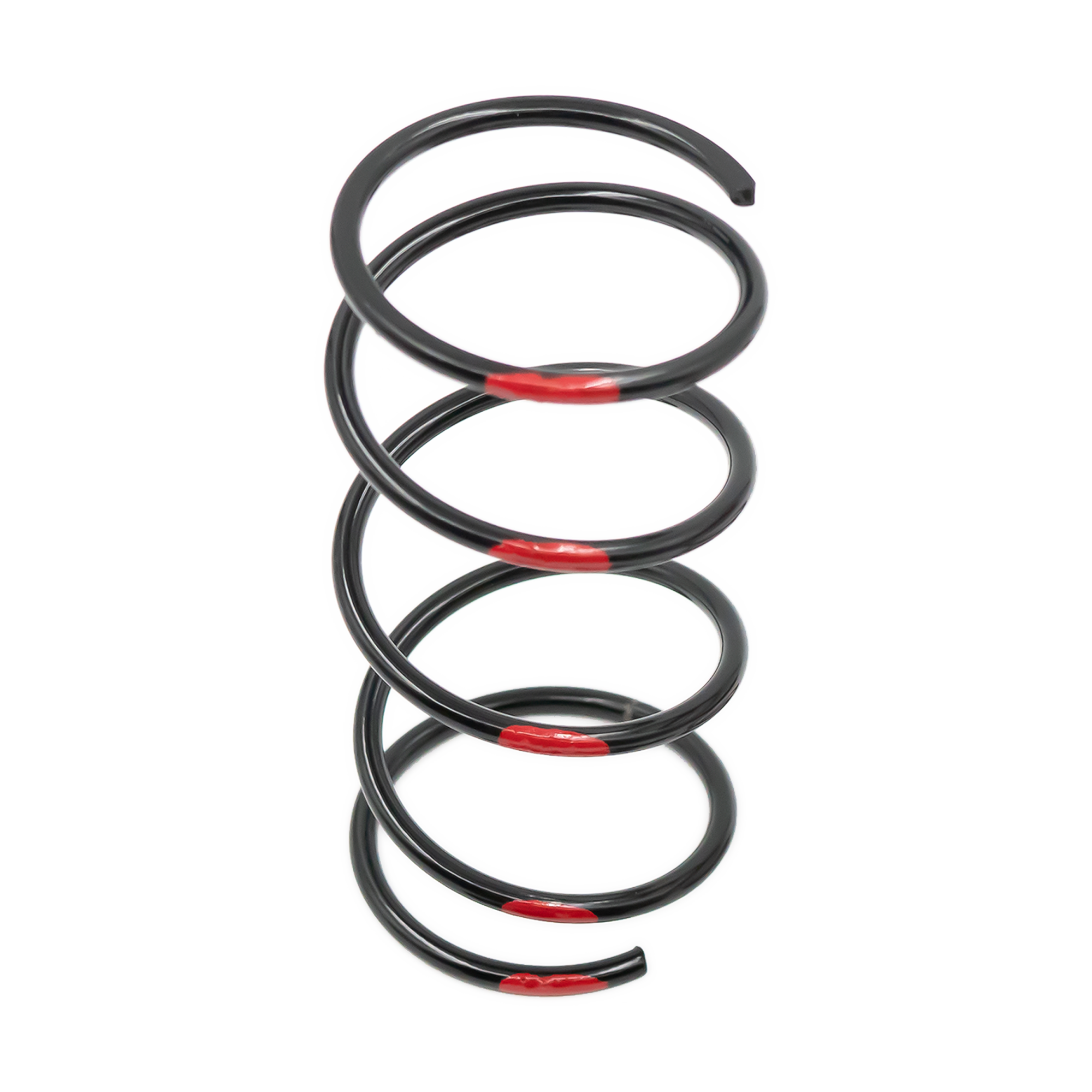

Secondary Clutch Spring (155-222) for Polaris Patriot Snowmobiles // SKU: 05-TP155-222

SKU: 05-TP155-222

Primary Application: Polaris Patriot 850, 9R, and Patriot Boost short track, trail, and crossover snowmobiles equipped with TSS-06 secondary clutches.

Elevate secondary clutch responsiveness and maintain your target shift RPM with the Bikeman Performance 155-222 Secondary Clutch Spring for Polaris Patriot snowmobiles. Developed through extensive R&D and field testing on high-speed trail systems, this spring delivers precise side-pressure against secondary sheaves to optimize belt squeeze, eliminate slippage, and sharpen backshifting.

Manufactured from premium, high-tensile spring steel, it resists heat sag and rate degradation through extreme operational stress. Featuring a 155 lb initial load and a 222 lb finish load, this spring rate profile provides the exact force curve required for crisp, linear shift-out and instantaneous backshift response when working aggressive trail corners and hard acceleration runs.

Key Performance Features

• Trail & Crossover Patriot Calibration: Specially engineered to complement the horsepower curve and clutching needs of short-track, trail, and crossover Patriot 850, 9R, and Boost models.
• 155-222 Spring Rate Profile: 155 lb initial load delivers targeted initial preload, while the 222 lb finish load maximizes belt grip and accelerates backshifting coming out of trail corners.
• Holds Target Shift RPM: Maintains steady side-load pressure on secondary sheaves to prevent belt glazing and RPM fading during long, high-speed pulls.
• High-Tensile Steel Construction: Crafted from premium spring steel built to withstand severe heat cycles, torsional twisting, and heavy trail abuse season after season.

Product Specifications & Compatibility

• SKU: 05-TP155-222
• Compatibility: Polaris Patriot 850, 9R, and Patriot Boost short track, trail, and crossover models using TSS-06 secondary clutches (Switchback, Indy, VR1, Cross-Country)
• Spring Rate: 155 lb Initial Load / 222 lb Finish Load
• Component Type: Secondary Driven Clutch Spring
• Primary Function: Manages secondary clutch shift-out rate, belt tension, and backshift speed for low-altitude and trail setups
