AiM XLog Compact Performance Data Logger // SKU: X08XLOGOBD200

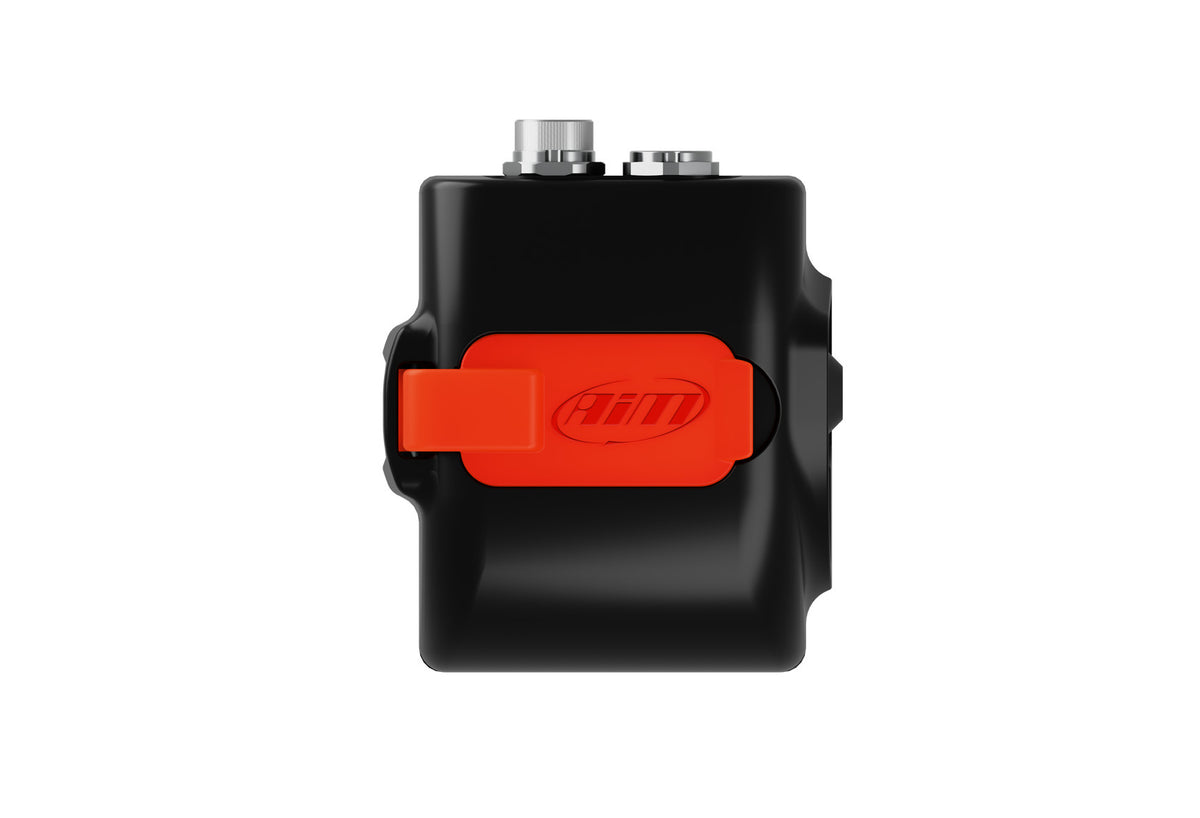

The AiM XLog Compact Data Logger is a rugged, waterproof performance logging solution engineered to capture comprehensive telemetry in a micro-sized housing (72.3 x 65.3 x 30.3 mm). Combining a high-precision 25 Hz GPS receiver, a 6-axis Inertial Measurement Unit (IMU), and multi-protocol ECU communication, the XLog automatically tracks lap times, sector splits, speed, position, and 3D g-forces for in-depth data analysis.

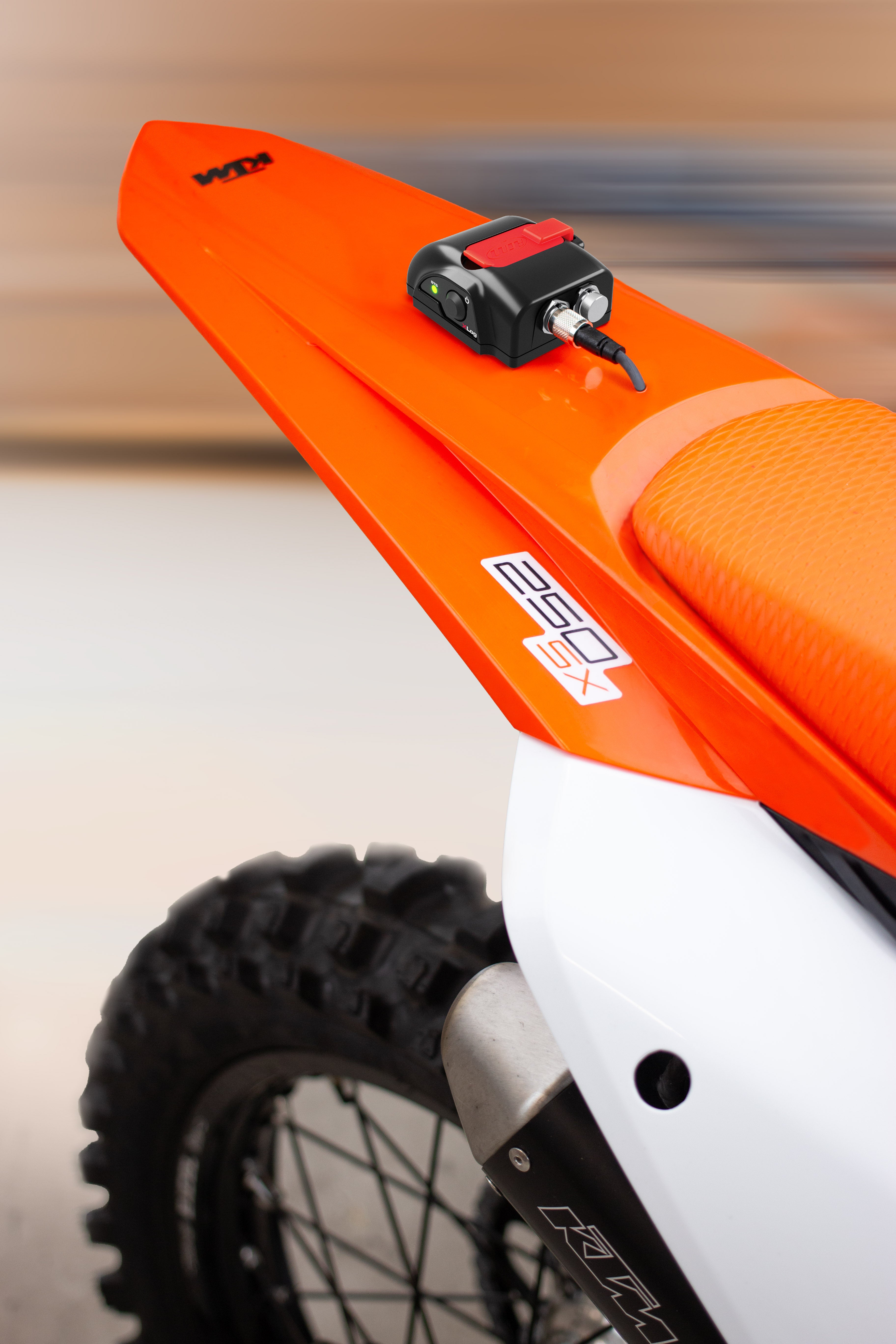

Designed for severe motorsport and powersports environments, the XLog offers seamless connectivity via Wi-Fi, Bluetooth, and USB-C. Powered by an internal 1500 mAh rechargeable lithium battery delivering up to 10 working hours, this standalone logger features 4 GB of onboard memory alongside an included 16 GB removable USB-C memory key for fast, effortless data offloading.

Key Performance Features

  • 25 Hz GPS & 6-Axis IMU: High-rate 25 Hz GPS module paired with an internal 3-axis accelerometer (±5G) and 3-axis gyro captures sub-second lap timing, sector splits, trajectory, and 3D chassis motion.

  • Comprehensive ECU Integration: Logs directly from your ECU via CAN, K-Line, or RS232 protocols. Select from thousands of pre-configured vehicle protocols or build custom protocols for specialized setups.

  • Dedicated Digital RPM Input: Includes a dedicated RPM input capable of reading signals directly from coil primary ignition (150–400V) or square wave sources (8–50V) when no ECU connection is available.

  • Wireless & Wired Connectivity: Integrated Wi-Fi, Bluetooth, and USB-C connections allow fast device setup, firmware updates, and quick data transfers.

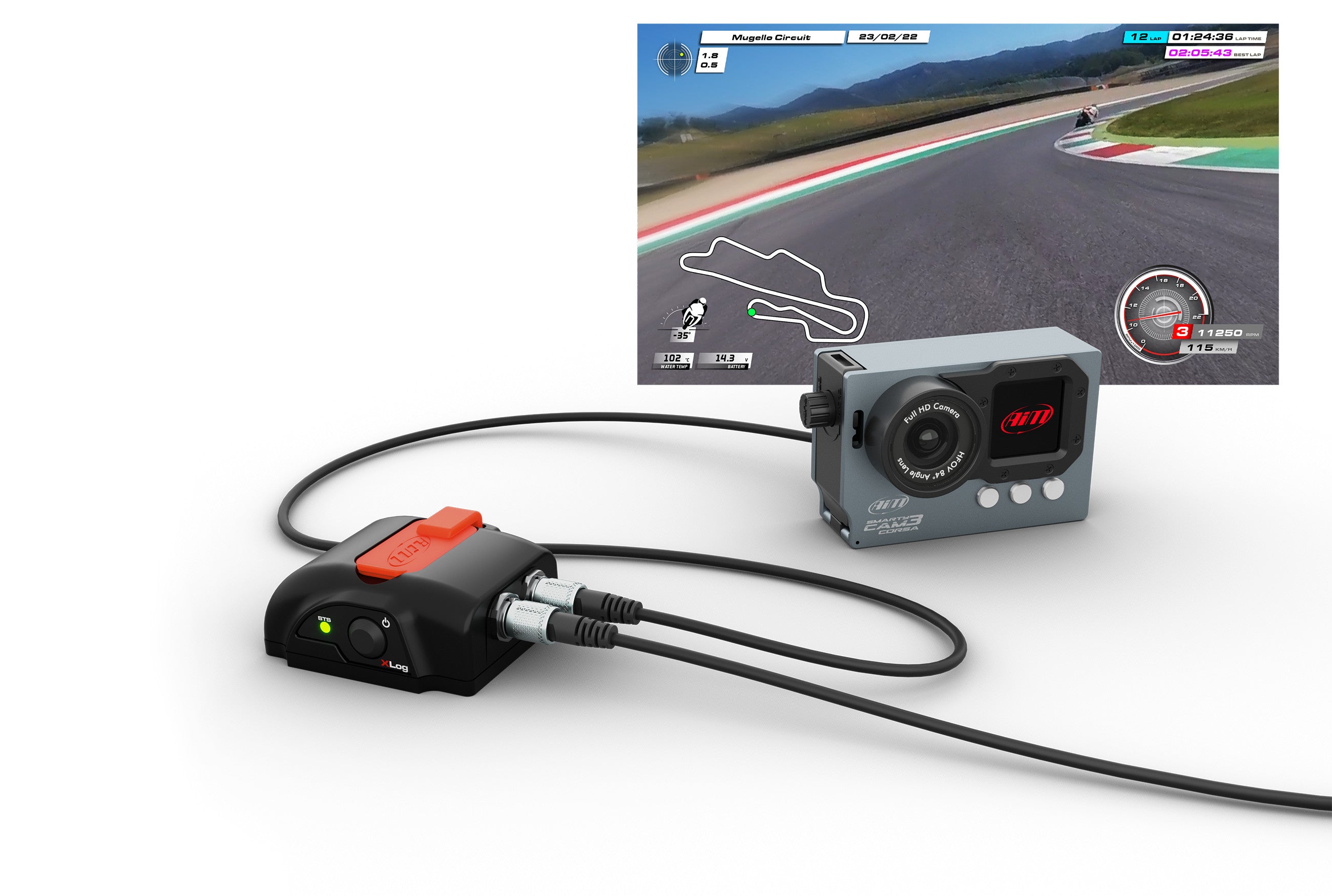

  • Modular CAN Expansion Port: Features a second CAN port to expand capabilities with external devices like LCU1S Lambda controllers, ACC3 analog modules, external GPS, and SmartyCam 3 series cameras.

  • Rugged Waterproof Construction: Molded from PA6 GS30% glass-filled composite with an IP65 waterproof rating to withstand rain, mud, and intense vibration.

Product Specifications

  • SKU: X08XLOGOBD200

  • Dimensions & Weight: 72.3 mm x 65.3 mm x 30.3 mm | Approx. 150 g

  • Housing Material: PA6 GS30% Glass-Reinforced Nylon

  • Waterproof Rating: IP65

  • GPS Module: Integrated 25 Hz GPS with Built-In Track Database

  • Inertial Platform: 6-Axis IMU (Internal 3-Axis ±5G Accelerometer + 3-Axis Gyroscope)

  • ECU Communication: CAN, RS232, or K-Line Protocols

  • Digital RPM Input: 1 Input (Coil Primary 150–400V or Square Wave 8–50V)

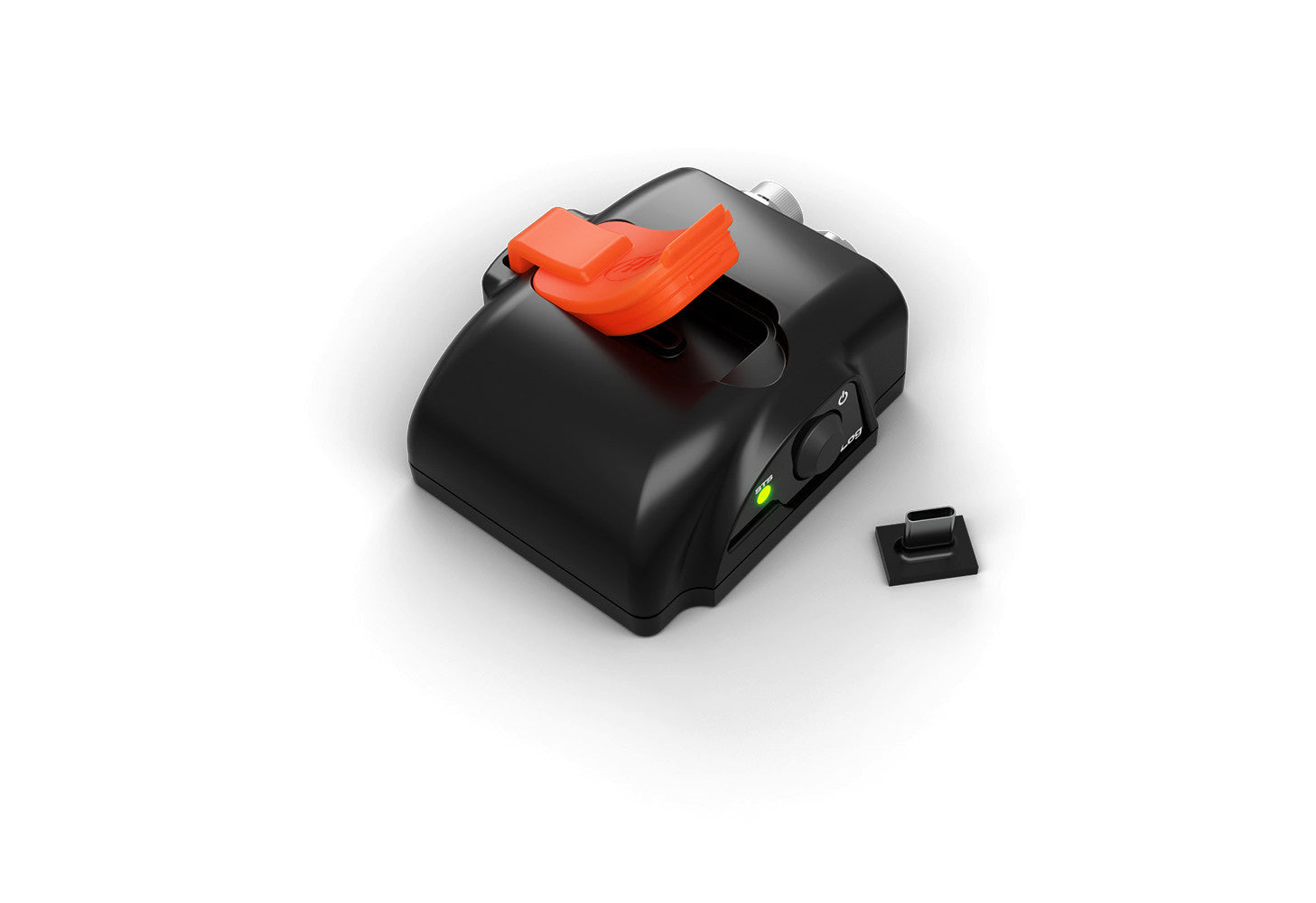

  • Memory: 4 GB Onboard Memory + Included 16 GB Removable USB-C Memory Key

  • Battery & Runtime: Internal Rechargeable 1500 mAh Lithium Battery (Up to 10 Working Hours)

  • External Power Input: 9–15V DC

  • Connectors: 1 x 5-Pin Binder 712 Socket + 1 x 8-Pin Binder 712 Socket

  • Supported Expansions: AiM ACC3, LCU1S, SmartyCam 3 Series, External GPS Modules
